high speed prepainted color steel galvanized ghana roofing sheet 850 corrugated machine supplier

FOB Reference Price:Get Latest Price
$5,000.00 - $10,000.00 / Set | 1.0 Set/Sets (Min. Order)
Model Number:
850 corrugated machine
Power:
3.0kw 4.0kw
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 30 60 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Construction works
After Warranty Service:
Video technical support, Online support
Local Service Location:
None
Showroom Location:
None
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Steel
Use:
Roof/Wall
Production Capacity:
3~8m/min
Place of Origin:
China
Brand Name:
Zhouming
Voltage:
380V 50Hz 3phases
Dimension(L*W*H):
depend on design
Weight:
usually about 3Tons~10 Tons
Certification:
SGS
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points:
Easy to Operate
Rolling thinckness:
0.3-0.8mm
Feeding width:
1220mm, 900mm, 1200mm, 1000mm, 1250mm
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 YEAR
Core Components:
Motor, PLC
Product name:
roofing sheet 850 corrugated machine
Main frame:
300mm/350mm H-Beam
Middle Board:
14mm~16mm
Main Motor Power:
3.0kw-4.0kw
Roller stations:
8-20rows
Control system:
PLC(detla) System
Cutting type:
Automatic Hydraulic Cutting
Decoiler:
Manual Decoiler
Shaft material:
High Grade No.45 Forged
Cutting blade material:
Cr12 Quenched
Supply Ability
Supply Ability:
20 Set/Sets per Month galvanized ghana roofing sheet 850 corrugated machine supplier
Packaging & Delivery
Packaging Details
(secured to container by hick iron wire,rollers and plc cover by plastic cloth)
Port
Tianjin port
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 30 60 To be negotiated
Specification
1.Suitable material
Color steel sheet , galvanized steel sheet,aluminum sheet
2.Installation Dimension (L*W*H):
6.5m*1.5m*1.4m(depend on design)
3.Main motor power
3KW or 4KW with Cycloidal reducer
4.Hydraulic station power
3KW or 4KW
5. Hydraulic oil pump
CB-E 310
6.Thickness of material
0.3mm~0.8mm
7.Diameter of principal axis
Φ70-90mm
8.Material expand width
1000mm/1200mm
9.Electric tension
380V 3phase 50HZ or as the customer's requirements
10.Material of roller
High grade 45# forged steel plated with hard chrome plating
11.Controlling system
PLC control
12.Processing speed
3-6m/min
13.Processing precision within
1.00mm (depend on design)
14.Material of cutting blade
Cr12 mould steel with quenched treatment
15.Kind of drive
0.6 inch chain link bearing model 6210
16.Roller station
8-20 Rollers
17.Roller material
high grade 45#steel; Cr12 quenching

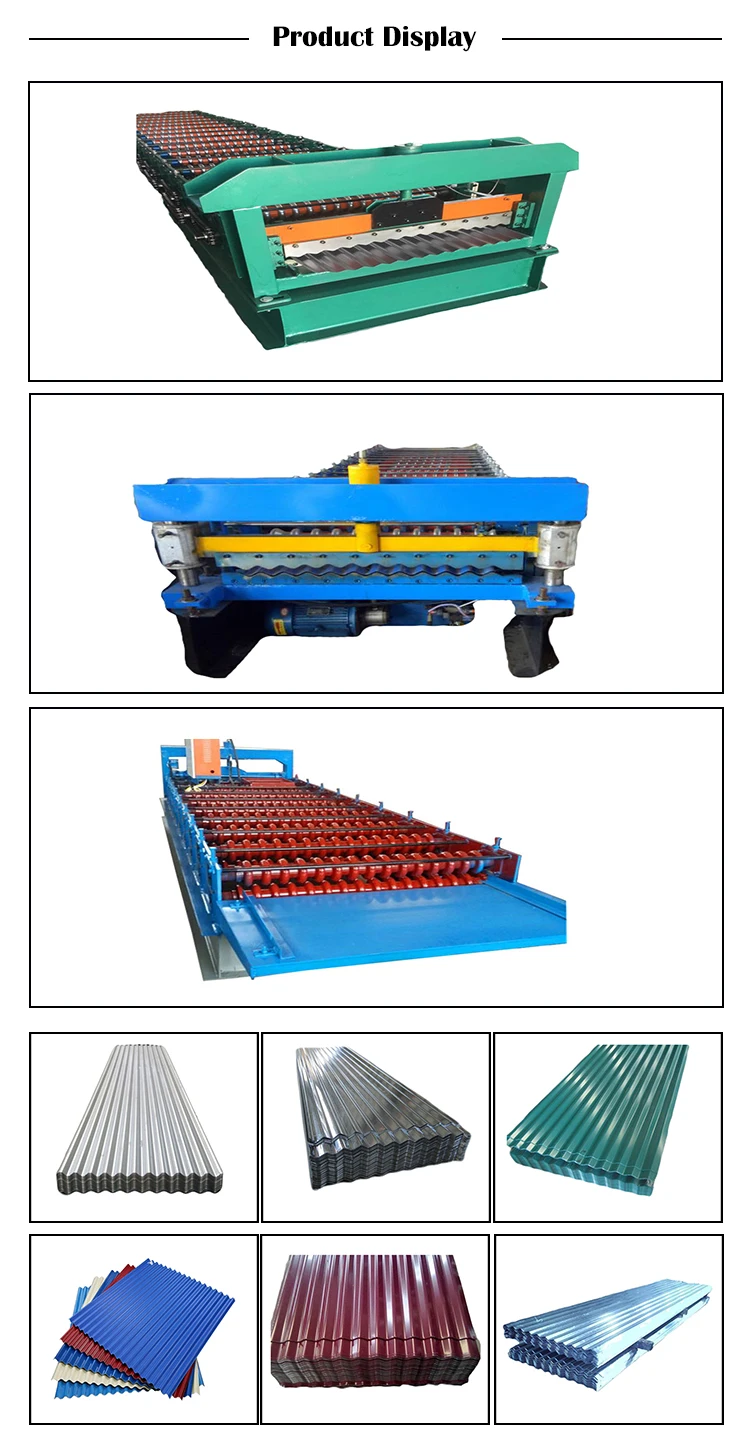

Product Description

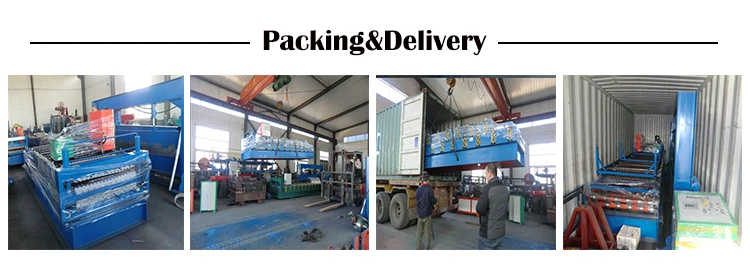

Packing & Delivery
Our Advantages
Company Profie
Recommend Products
FAQ
Q1:What is the MOQ? A:For roll forming machine,the MOQ is one set. Q2:Could you design the machine for me? A:Yes,we have professional team of engineers and are able to design and product roll forming machine as your requestment. Or if you have own drawings,we can design it as your drawings. Q3:Are you trading company or factory?Can we visit your factory? A:We have our own production line and factory.Warmly welcome to our factory. Once we have your schedule, we will arrange the professional sales team to follow up your case. Q4: What's your after-sale service? A: We'll provide engineer overseas service to help you install and debug the machine,in addition,free replacement of parts in one year warranty. Q5: How is your Payment Term? A:T/T,L/C ,Western Union Q6: What’s your delivery time? A:Normally it is about 45 days, but we will delivery as soon as possible Q7:How about the trade terms? A:EXW,FOB,CFR,CIF will be accepted. Q8:Do you accept private label? Customize logo printed or package ? A:Yes,they are all welcome as your request.
