Roof EPS Sandwich Panel

FOB Reference Price:Get Latest Price
US $6-12 / Meters | 500 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
zm
Model Number:
EPS sandwich panel
Panel Material:
Metal
Type:
EPS Sandwich Panels
thickness of steel sheet:
0.26-0.7mm
thickness of foam:
50,75,100,120,150,200mm
effective width:
980/950mm
length:
any length
density of foam:
5-20kg/m3
color:
any color
zinc coated:
40-275g/㎡
color coated:
15-25um
Advantage:
thermal insulation, heat preservation, easy install
application:
cold room,prefab house, roof and wall of any buildings
SupplyAbility
SupplyAbility:
2000 Meter/Meters per Day
Packaging & Delivery
Packaging Details
Nude packing and covered by PVC film or according to the customers' requests.
Port
Tianjin port
Lead Time :
Within 7-15 days after received deposit
Video Description

Roof EPS Sandwich Panel

we can not only supply sandwich panels but also supply the related accessories,

like screws, ridges, flashings and so on.

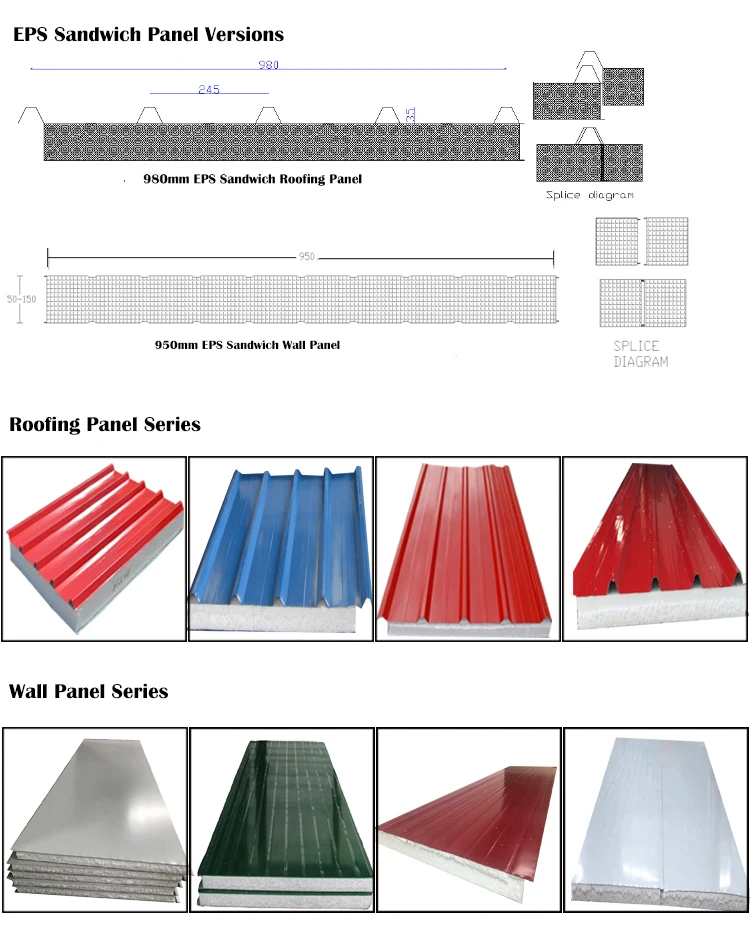

                                  wall profile                                                       roof profile

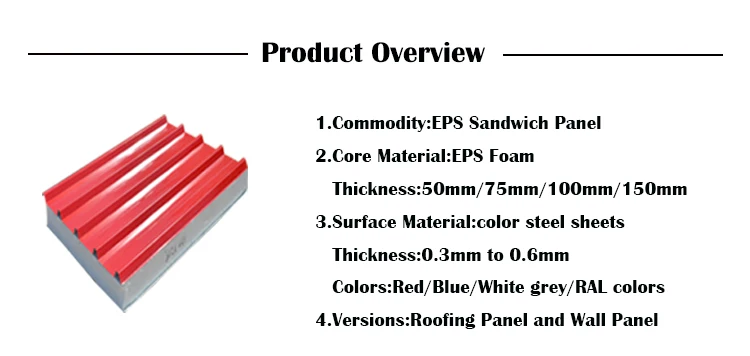

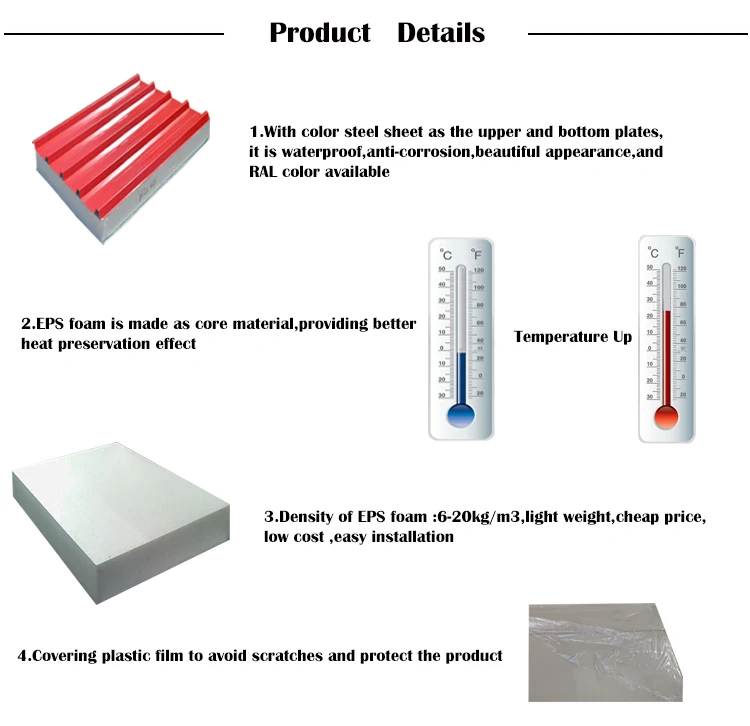

Name: EPS sandwich panel



Raw Materials: EPS foam+ two layer color coated steel sheets



Advantage: Strong thermal insulation, heat preservation,easy install, waterproof,long service life,                                           strong bearing capacity.



Density of EPS foam : 5-20kg/m3



Working life:  Usually 5-20 years,we also have 20-30years.











Type

EPS sandwich panel
All accessories are available,like self-tapping, ridge tile.,etc.

Specification

Total thickness

About 50-200mm

Effective width

950/980mm

Length

any length

Top of panel

Material

steel sheet

Thickness

0.26-0.6mm

Thickness of the zinc

40-100g/m2

Corrosion protection

Galvanized, Galvalume

Coating

PE paint

Thickness of coating

15-20 micron

Color

As your request

Pattern

rib or plain type

Insulation

Optional foam Material

EPS foam

Thickness

50/75/100/150/200mm

Density

5-20kg/m3

Thermal conductivity

0.02~0.03w/mk

Bottom of panel

Material

steel sheet

Steel thickness

0.26-0.6mm

Color

As your request

Corrosion protection

Galvanized, Galvalume

Coating

PE paint

Thickness of coating

7-10micron

Pattern

Plain type



Install&Production line:

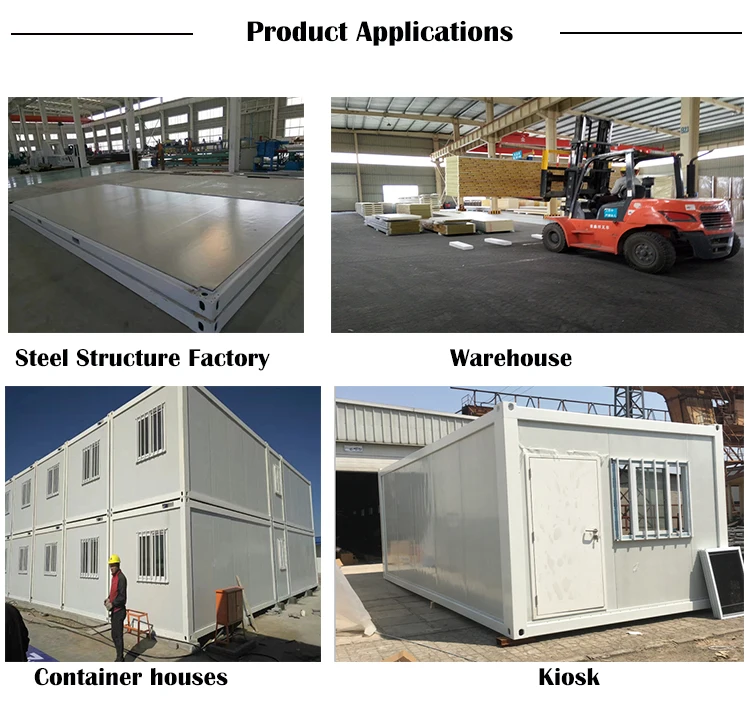

Application:

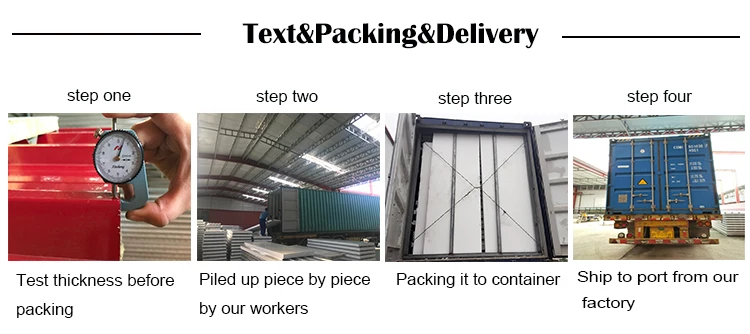

Loading:



Common materials of sandwich panel:
