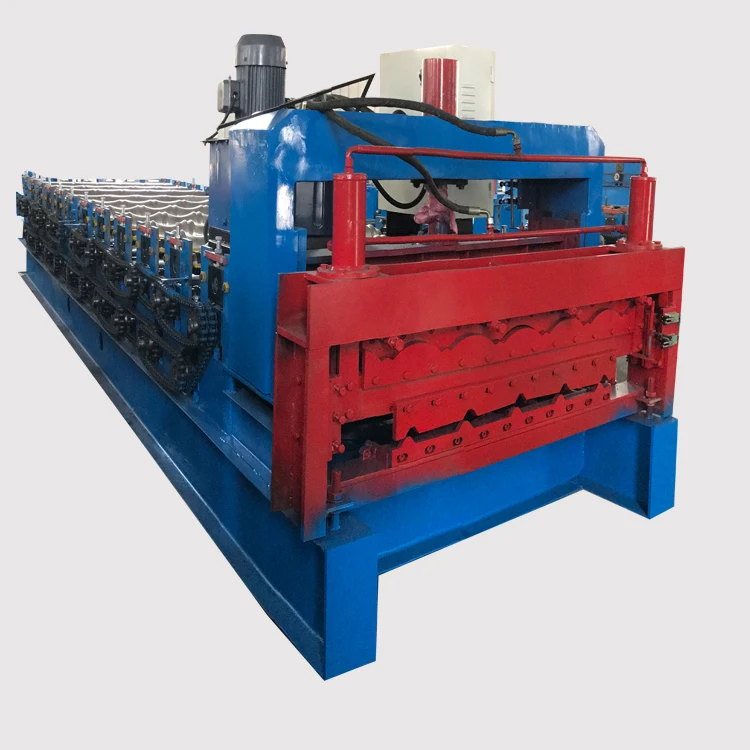

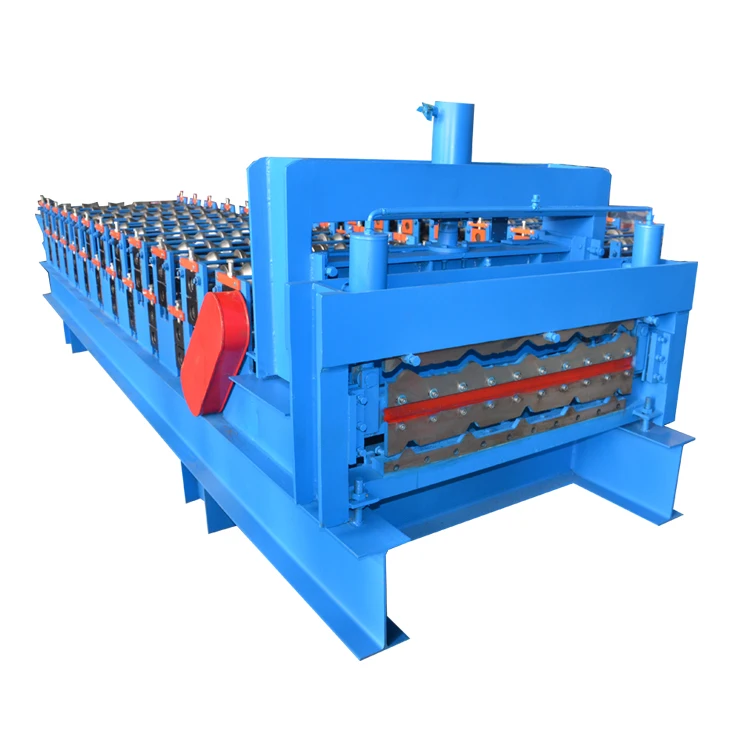

Double Layer Roll Forming Machine / rollformers, Metal Roofing, Corrugated Steel Sheet,Wall Panel, Glazed Tiles

FOB Reference Price:Get Latest Price
$7,000.00 - $12,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
roof tile rolling machine
Power(W):
3KW ~ 4KW(depend on design)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Building Material Shops, farms, HOME USE, Construction works
After Warranty Service:
Video technical support, Online support, Spare parts
Local Service Location:
none
Showroom Location:
none
Condition:
New
Type:
Tile Forming Machine
Tile Type:
Colored Steel
Use:
ROOF
Production Capacity:
8-12m/min(depend on design)
Place of Origin:
Hebei, China
Brand Name:
zhouming
Voltage:
380v(depend on design)
Dimension(L*W*H):
depend on design
Weight:
depend on design
Certification:
CE/ISO
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Key Selling Points:
High Safety Level
Rolling thinckness:
0.3-0.8mm
Feeding width:
1220mm, 1200mm, 1000mm, 1250mm
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 YEAR
Core Components:
MOTOR, GEAR, pump, engine, PLC
Product name:
Double Layer Roll Forming Machine / rollformers, Metal Roofing
Main frame:
300mm/350mm/400mm H-Beam
Sideboard:
14mm~16mm
Roller material:
45#steel Chrome Plated
Roller stations:
8-20rows
Control system:
PLC(detla) System
Diameters of roller:
65-90mm
Cutting type:
Automatic Hydraulic Cutting
Main Power:
3KW ~ 4KW
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
secured to container by hick iron wire,rollers and plc cover by plastic cloth for coin making machine
Port
Tianjin Xingang port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Specification
Suitable material
Color steel sheet , galvanized steel sheet,aluminum sheet
Machine versions
corrugated/trapezoid/glazed tile
Installation Dimension (L*W*H):
depend on design
Main motor power
3KW or 4KW with Cycloidal reducer
Hydraulic station power
3KW or 4KW
Hydraulic oil pump
CB-E 310
Thickness of material
0.3mm~0.8mm
Diameter of principal axis
Φ70-90mm
Material expand width
1000mm/1200mm
Electric tension
380V 3phase 50HZ or as the customer's requirements
Material of roller
High grade 45# forged steel plated with hard chrome plating
Controlling system
PLC control
Processing speed
3-6m/min
Processing precision within
1.00mm (depend on design)
Material of cutting blade
Cr12 mould steel with quenched treatment
Kind of drive
0.6 inch chain link bearing model 6210
Roller station
8-20 Rollers
Roller material
high grade 45#steel; Cr12 quenching
Product Description
Packing & Delivery
Our Advantages
Company Profie
Shijiazhuang Zhouming Steel Building Materials Co., Ltd. which is an import and export company with its own factories, is located in Shijiazhuang city , Hebei province.Our company has Shijiazhuang Gaoxin Color Steel Factory , Shijiazhuang Gangzhijie Steel Structure Factory, Hebei Zhuomei Steel Structure Factory and Cangzhou Zeming Roll Forming Machinery Factory.
Our main products are steel structure ,color steel sheet ,color steel coil ,sandwich panel and roll forming machine. We can provide one-stop service, whether for manufacturers, traders or end customers, we can provide design, production, installation and after-sales service according to customer needs. We can provide a range of professional services including machine layout design,machine guidance and commissioning, sheet installation teaching, steel structure design, fabrication and installation.
Our products are not only popular in China, but also enjoy high reputation in Russia, Saudi Arabia, Slovenia, Peru, Angola,
Zambia, South Africa, Spain, Australia, etc, more than 20 countries and regions.
We insist on the service principle of quality oriented and credibility based, supply high quality products with best service, and sincerely hope to start long time business relationship with you.

Recommend Products
FAQ
Q1:What is the MOQ? A:For roll forming machine,the MOQ is one set. Q2:Could you design the machine for me? A:Yes,we have professional team of engineers and are able to design and product roll forming machine as your requestment. Or if you have own drawings,we can design it as your drawings. Q3:Are you trading company or factory?Can we visit your factory? A:We have our own production line and factory.Warmly welcome to our factory. Once we have your schedule, we will arrange the professional sales team to follow up your case. Q4: What's your after-sale service? A: We'll provide engineer overseas service to help you install and debug the machine,in addition,free replacement of parts in one year warranty. Q5: How is your Payment Term? A:T/T,L/C ,Western Union Q6: What’s your delivery time? A:Normally it is about 45 days, but we will delivery as soon as possible Q7:How about the trade terms? A:EXW,FOB,CFR,CIF will be accepted. Q8:Do you accept private label? Customize logo printed or package ? A:Yes,they are all welcome as your request.
